We manufacture new MWD centralizers and restore serviceable bodies through a controlled, production-scale remolding program. This is not basic rubber overmolding. Core condition, surface preparation, compound selection, bond integrity, blade geometry, and finished OD are all controlled as part of one manufacturing process, because every one of them affects performance downhole.
Anyone can mold rubber onto a sleeve. The centralizers that keep tools in service come from the compound, the speed and discipline of the program that rebuilds them, and the ability to make a fleet identify itself.
Advanced Series HNBR holds more than 4,500 psi tensile and 300 lbf/in tear at 85–90 Shore A. HyperHeat™ is a separate compound architecture rated to 200 °C. Both were developed for side loading, mud chemistry, and time at temperature, then earned their reputation one run at a time. The compound is ours. It is not available anywhere else.
A remold program only matters if the centralizers come back before the tool is needed. With more than fifty molds on the floor and molding, finishing, and inspection in one building, batches move through in days, not weeks, and the turnaround is committed when the order is entered. Your bodies are stripped, rebuilt, and verified, never covered up.
High-performance elastomers get their strength from black reinforcing systems. Replacing them without giving up heat resistance, bond, or service life takes specialized compound development and tightly controlled molding, which is why nobody else offers it. Because formulation, color system, bonding, and cure are all ours, the color runs through the part and the part still performs.
Two proprietary HNBR platforms. One is the compound this company was built on. The other exists for wells where the standard stops being standard. The right choice is made around actual operating conditions, not the most aggressive spec available.

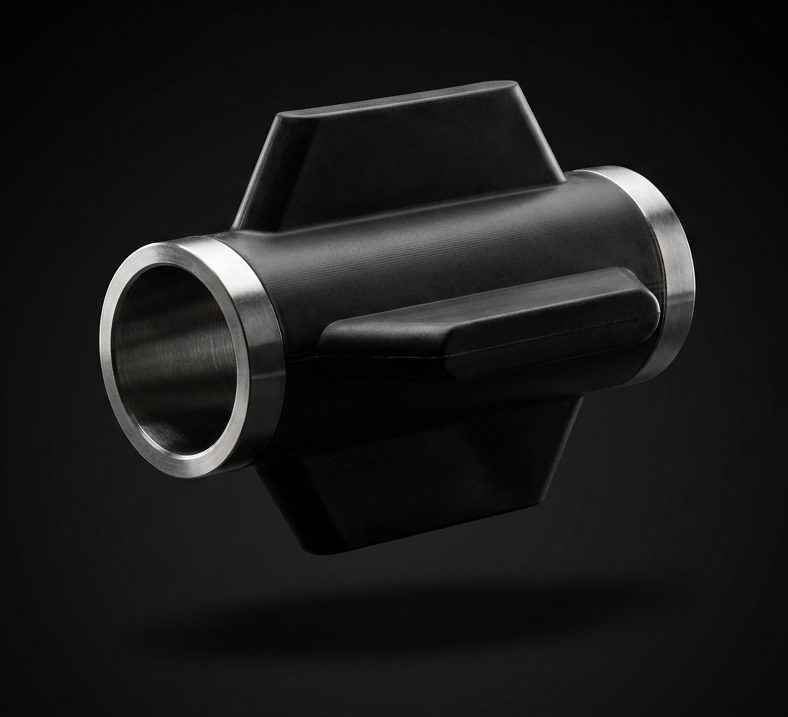

The centralizer platform Fifty X was built on. A proprietary HNBR compound engineered to balance stiffness, flexibility, wear resistance, tear resistance, and structural integrity under load, for consistent standoff and repeatable geometry in demanding vertical and directional work.
| Compound | Proprietary HNBR · EL3006105060 |
|---|---|
| Durometer | 85–90 Shore A |
| Tensile strength | > 4,500 psi |
| Tear resistance | > 300 lbf/in |
| 100% modulus | > 1,100 psi |
| 300% modulus | > 3,800 psi |
| Elongation | > 320% |
| Standard appearance | Black · colors where qualified |
| Molding capability | Up to 5.0" OD |
Patent-pending high-temperature platform for the mechanical and thermal demands of modern directional drilling. A separate compound architecture, not the Advanced Series with a different label, developed to preserve geometry, stiffness, and tear resistance when thermal stability at temperature becomes the job requirement.
| Compound | Advanced HNBR · HH0681016003 |
|---|---|
| Durometer | 90 Shore A |
| Tensile strength | > 4,000 psi |
| Tear resistance | > 300 lbf/in |
| 100% modulus | > 1,400 psi |
| Max compound rating | 200 °C / 392 °F |
| Standard appearance | Black |
| Status | Patent pending |
| Remold | Case by case · segregated from standard |
Technical values are compound data, not a prediction of downhole service life. Temperature, time at temperature, mud chemistry, pressure, abrasion, mechanical loading, tool design, well geometry, and prior service history all affect elastomer life. Our team reviews the expected application before recommending a platform.
A worn centralizer does not have to become a discarded centralizer. When the metal body is still serviceable, we remove the worn elastomer, prepare the insert, and mold a new centralizer around your existing core, extending the life of the fleet without buying a new insert every time the rubber wears out.
Remolding is not patching, coating, or covering damaged rubber. It is a controlled manufacturing process, and every body that comes back goes through all of it or is held for your disposition. Nothing gets hidden under new rubber.
Local pickup and delivery are free for remolded centralizers. Houston-area fleets: tell us when the bodies are ready and we will come get them and bring them back.
Color can be engineered into the elastomer to distinguish compound types, temperature ratings, tool sizes, product lines, or customer-specific configurations at a glance. Fewer mix-ups in the field. Simpler inventory. And because we mold in-house, none of it costs durability, consistency, or downhole performance.
Producing a colored downhole elastomer is not as simple as adding pigment. Traditional high-performance compounds rely on black reinforcing systems for their strength, and replacing them without compromising tensile, heat resistance, bonding, or service life requires specialized compound development and tightly controlled molding. We are the only downhole centralizer manufacturer offering elastomers in a true range of colors because we control the formulation, the color system, the bonding, the cure, and the finished part as one integrated process.
Assign a color to a compound, a temperature rating, a tool family, a diameter, a region, or a customer. Recognition happens on the rack, at assembly, and at the point of deployment without reading a part number. Every colored configuration is qualified for compatibility, pigment loading, cure, hardness, bond, and batch consistency, and it complements permanent marking and traceability rather than replacing them. Where exact matching matters, approve a physical sample, not a screen.
A centralizer varies by far more than finished OD: blade count, width, angle, leading and trailing profile, overall length, insert configuration, ID geometry, installation and retrieval method, fin-cutter strategy, and the loads the tool puts on it. We support established profiles and build to the ones that don't exist yet.
If the mold exists, we move straight to configuration review and production planning. If it doesn't, we evaluate the mold, insert, and process needed to support the program.
Finished dimensions remain subject to profile geometry, mold capability, compound behavior, minimum blade thickness, and engineering review.
A centralizer is a bonded assembly. Because CNC machining and molding sit in the same organization, we evaluate the whole part, which matters most when you have an old centralizer, no drawing, and no supplier. Send us the part.
Recurring demand should not restart the conversation with every PO. We set up repeat-production and fleet-support programs so the shelf is visible before it is empty.
You don't need a drawing package to begin. A photo, a sample, an ID and OD, a blade count, a tool type, a quantity, and a date are enough for us to identify the profile, check mold availability, recommend a platform, and tell you what else we need.
Often, yes. Customer-owned bodies are evaluated for profile compatibility, insert condition, mold availability, dimensional requirements, and bond preparation. Acceptance is confirmed after review.
There is no responsible universal answer. Eligibility depends on the condition of the metal insert, not the number of prior cycles: overall length, shoulder condition, bonding geometry, corrosion, erosion, deformation, and prior damage all count.
Yes. From a drawing, a 3D model, a sample, a customer-owned insert, or basic dimensions. We evaluate the insert, profile, mold requirements, elastomer selection, and repeat-production plan.
Multiple standard and customer-specific diameters, with molding capability up to 5.0" OD. Availability depends on profile, existing mold inventory, insert geometry, and material system.
No. Color is pigmented into the elastomer and molded through the rubber. It is not a surface coating.
We can evaluate brand colors. Final approval may require a physical sample, a minimum batch, and compound testing. Screen colors are not a production standard.
No. HyperHeat™ is for applications that need a higher-temperature platform. The Advanced Series remains the correct, more practical choice for most standard drilling programs.
Case by case, depending on insert condition, profile, material identification, and requirement. HyperHeat™ remolding is kept segregated from standard-compound remolding and must be specified at order entry.
Yes. Our machining division supports fin cutters and related MWD components based on connection, required retrieval diameter, and your configuration.
Whether you are rebuilding ten tools, managing hundreds of centralizers, developing a new platform, or replacing a product your current supplier can't deliver, the job is the same: understand the configuration, build the right centralizer, make the next order easier.
